Gel Filling Machine

  • Applicable Tube Size Φ13*75/100mm; Φ16*100mm
  • Working Speed 15000-18000pcs/hour
  • Space Occupation 6300*1200 (+1200) *2000 mm (L*W*H)

    Product Features

    • Full automation from the tube rack feeding to the finished product outputting. Only 1 experienced operator can meet the production demand
    • Optimized process and reasonable design, easy for operation, only need to put the gel barrel under the pressure plate of the gel filling pump directly, no need transfer the gel from the barrel to the feeding container
    • Utilization of gel reaches 99.9% without material wasted comparing to old technique
    • Automatic stirring, vacuum pumping and heating system to realize quick separation gel filling and air bubble removing functions

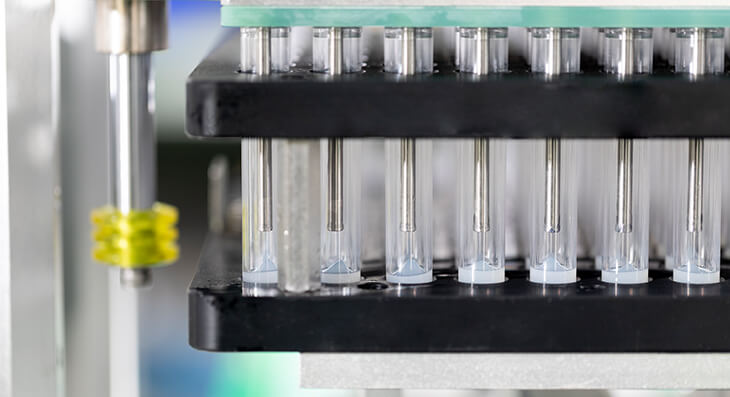

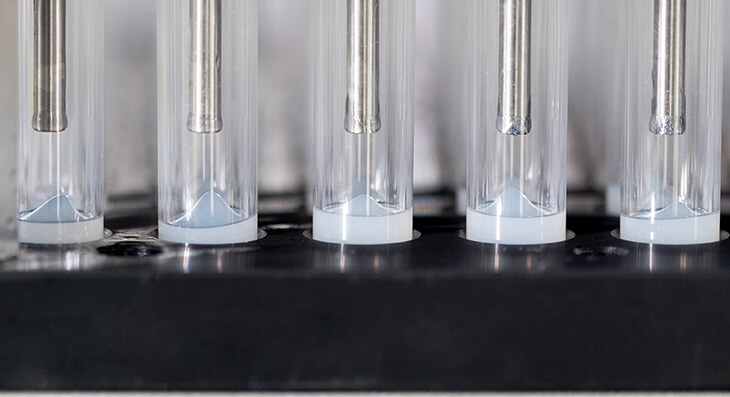

    • Separation gel filled by in」ection type with 20 filling heads, can directly set the gel volume on the touch screen, with higher precision and efficiency
    • Gel filling is not affected by the environment, it is equipped, with the heating insulation device, can keep the gel in operating temperature even in the winter
    • Simple design for easy operation and maintenance, stable production and high efficiency
    • Automatic tube loading station and automatic tube collection station can be added additionally to achieve full automation
    • PLC & HMI controlling, multifunction alarm and easy troubleshooting
    • Main body adopt high quality steel for weight bearing, surface and frame adopt stainless steel for easier cleaning. Meet GMP standard
